How to bind multiple xrefs reference files (xrefs) at one time?
How etransmit multiple autocad drawings without opening multiple xrefs of autocad files?
Imagine cad user have multiple cad file having multiple xrefs (external reference files) and user want to bind all these xrefs (external reference files), late us see how to bind multiple xrefs (external reference files) without opening cad files having xrefs.
Do the following steps to bind multiple xrefs :-
1-Go to file menu => eTransmitor type etransmit at the Command line, options are displayed.
 |
| how to bind multiple xrefs in autocad |
2-Select setup description and select transmittal setups, the dialog box displayed just click modify.
 |
| how to bind multiple xrefs in autocad |
 |
| how to bind multiple xrefs in autocad |

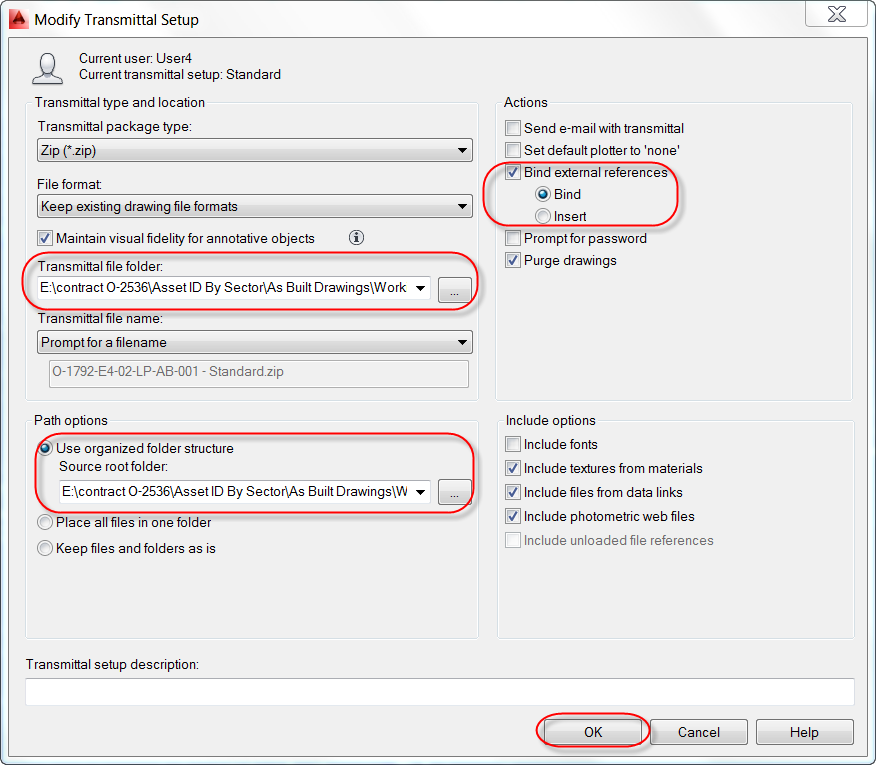

3- (A) Under action and tick mark Bind External references and Bind as shown below photo.
(B) go to transmittal file folder and path option then specify locations of folder see below photos.
 |
| how to bind multiple xrefs in autocad |
Note :- if you want insert xref tick mark insert instead of bind.
4- Click ok then close transmittal setups dialog box.
 |
| how to bind multiple xrefs in autocad |
5- Add autocad files to be bind then click ok.
 |
| how to bind multiple xrefs in autocad |
6-Finally specify location of file to be saved and click save button.
 |
| how to bind multiple xrefs in autocad |
